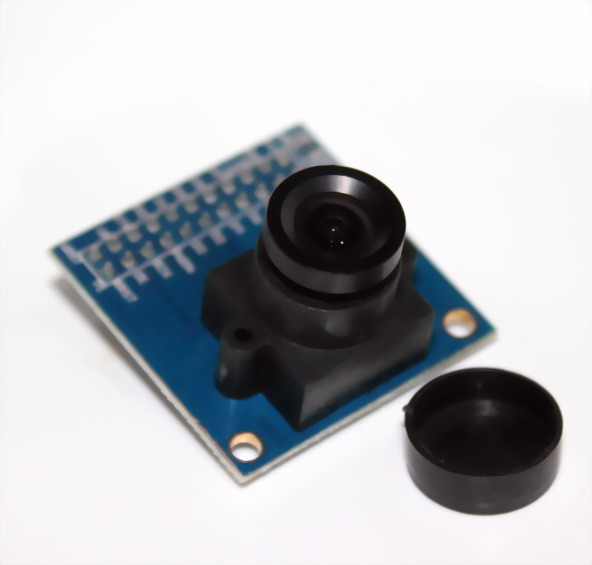

Camera Module OV7670 + Chip FIFO (AL422B) โมดูลกล้อง OV7670 พร้อมชิป FIFO

Camera Module OV7670 + Chip FIFO (AL422B) โมดูลกล้อง OV7670 พร้อมชิป FIFO
Camera Module OV7670 + Chip FIFO (AL422B) โมดูลกล้อง OV7670 พร้อมชิป FIFOCamera Module OV7670 + Chip FIFO (AL422B) โมดูลกล้อง OV7670 พร้อมชิป FIFOCamera Module OV7670 + Chip FIFO (AL422B) โมดูลกล้อง OV7670 พร้อมชิป FIFO
รหัสสินค้า SG20098
หมวดหมู่ โมดูลวัดสี กล้องและการมองเห็น Camera / Color / Vision
ราคา 420.00 บาท
สถานะสินค้า พร้อมส่ง
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

Features:

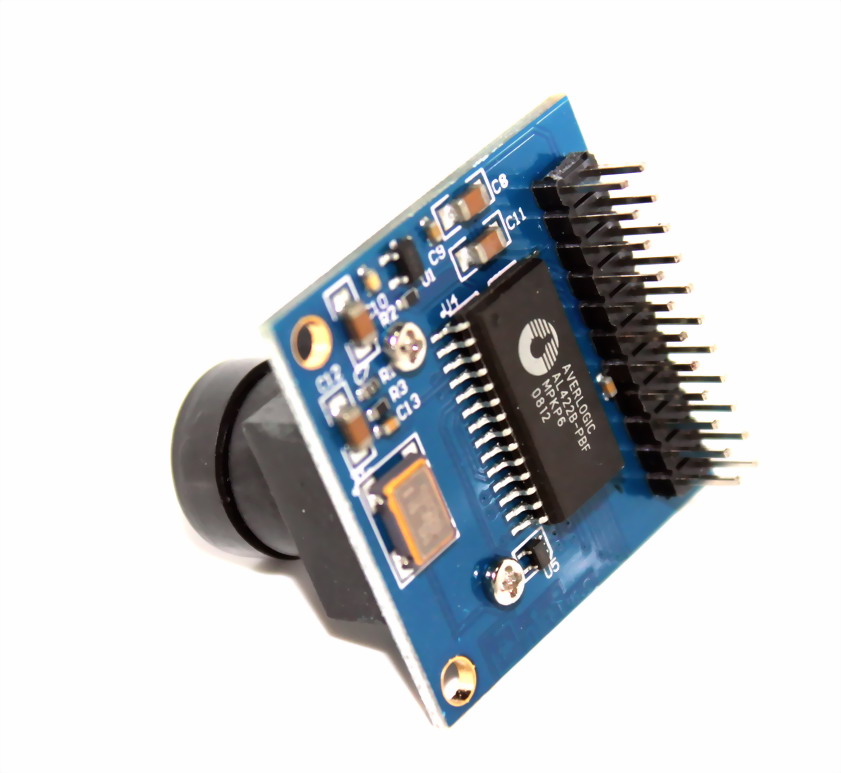

  • 380KB high-capacity FIFO AL422B, very suitable for slow MCU to acquisit image data directly through the I/O
  • 24MHZ active crystal oscillator
  • OV7670 2.8 V voltage stabilization LDO
  • Single work power 3.3 V (+ / -0.1 V), working temperature from 0 degrees - 50 degrees
  • The camera is all the glass lenses, lens (including seat) is magnesium alloy material, focal length of the lens is 3.6 millimeters 650nm bands
  • PCB is black FR - 4 ,quality heavy gold plate, effectively prevent the PCB from light leak problems (if it is not black, this module will have light leak problem and the images will have a shadow)
  • Module size is 3 * 3 centimeters (+ / - 0.5 mm)
  • Module pin is standard interface 2X10 2.54 mm, and convenient for cable to connect directly with microcontroller I/O for collecting images.
  • Support low illumination applications for high sensitivity
  • Support SCCB interface,and compatible with the I2C interface
  • Support RawRGB, RGB(GRB4: 2:2, RGB565/555/444), YUV(4:2:2) and YCbCr(4:2:2) output format
  • Support VAG?CIF and support all kinds of size from CIF to 40x30 size
  • Support VarioPixel sampling way
  • Support Automatic influencing control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic eliminate light stripe, automatic black level calibration. Image quality control including the color saturation, hue, gamma, ANTI_BLOOM sharpness
  • The ISP support eliminating noise and compensation bad point function
  • Support image scaling
  • Support compensation losing light
  • 50/60Hz automatic detection
  • Support adjusting saturation automatically(UV adjust)
  • Support adjusting Edge enhanced function automatically
  • Support adjusting noise reduction function automatically
