RFID Starter Kit (SparkFun)

อ่านการใช้งาน และ ตัวอย่างโปรเจค SparkFun RFID Starter Kit ได้ที่ Click Here

Description:

This it the SparkFun RFID Starter Kit, an all-in-one kit that offer everything you need to get your next RFID project off the ground. This kit includes our USB RFID Reader, ID-12LA RFID module, and two 125kHz RFID cards. We’ve done away with the annoying clamshell and now offer this in the same type of box as the rest of our kits.

The RFID USB Reader is a simple to use, USB to serial base unit for the ID-3LA, ID-12LA, and ID-20LA readers. Simply plug a reader into the headers and attach a miniUSB cable. Open a terminal program of your choice at 9600bps 8N1, then scan your 125kHz ID tag and the unique 32-bit ID will be shown on the screen. The unit is based on a FTDI chip and comes with a read LED and buzzer.

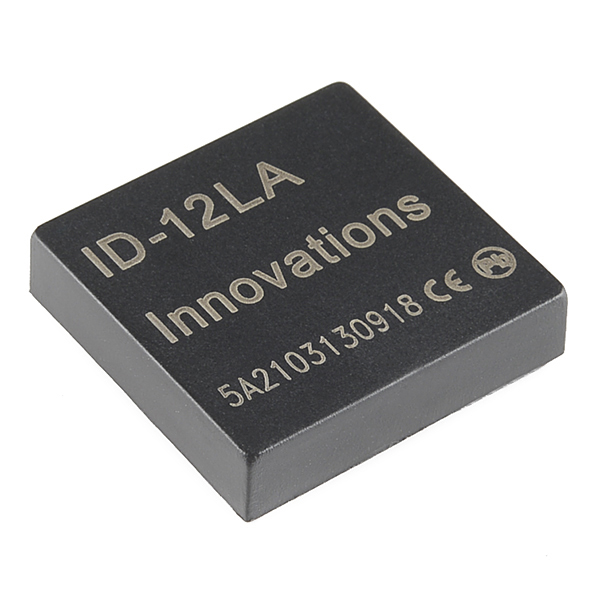

The ID-12LA is a very simple RFID reader module. It plugs directly into the USB reader to allow you to read RFID tags through a USB connection. Power the module, hold up a card, and get a serial string output containing the unique ID of the card.

Includes:

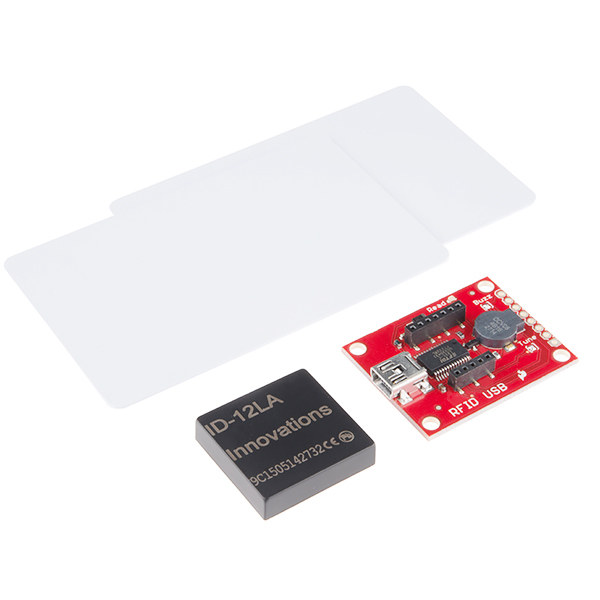

• 1x RFID USB Reader
• 1x ID-12LA RFID Module
• 2x RFID Card - 125kHz

Documents:

• Schematic (RFID USB Reader)
• Eagle Files (RFID USB Reader)
• Hookup Guide
• Datasheet (ID-12LA)
• USB FTDI Drivers for Linux, MAC, and PC

RFID USB Reader Overview

The RFID USB Reader has the following features:

1. A buzzer that sounds when a card is read. If you are using the RFID kit in a stealth application, you can disconnect the buzzer by removing the blob of solder on the Buzz jumper.

2. A “card read” LED

3. 2mm-spaced sockets that fit three of SparkFun’s RFID modules (the ID-3LA, the ID-12LA, and the ID-20LA)

4. A USB mini-B connector

5. An FTDI232RL USB-to-serial IC that converts the module’s TTL serial output to USB
