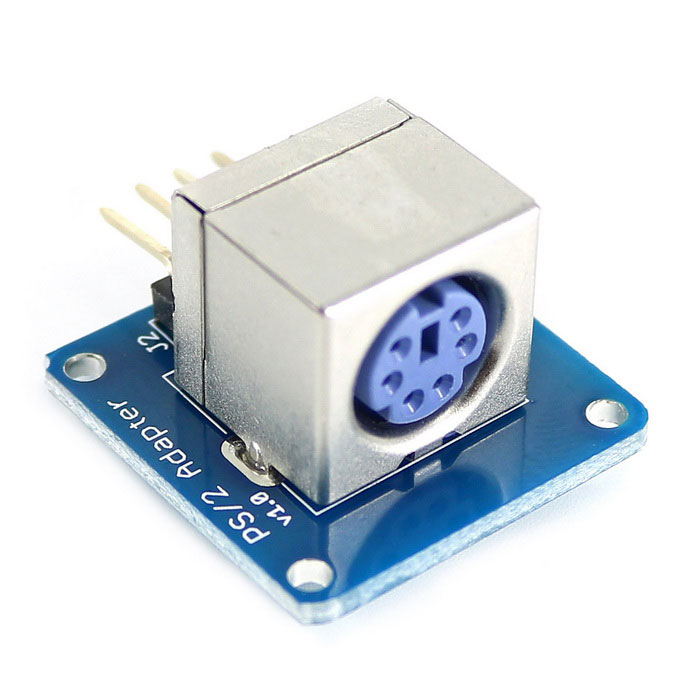

PS/2 Keyboard Adapter Module

The PS/2 Adapter enables you to connect a PS2 device to the Arduino mainboards. With the help of PS2Keyboard library, you can create the bridge between these PS2 keyboard and the Arduino. Standard PS/2 interface; Power Supply should be 5V DC; 4 screw mounting holes whose diameter is 2.2mm

Interface：



Control interface: A total of four pins (GND, VCC, DAT, CLK), GND to ground, VCC is the power supply, DAT is data input and output pin, CLK is the clock signal pin.

PS/2 socket: Standard PS/2 interface.

Mounting hole: 4 screw mounting holes whose diameter is 2.2mm, so that the module is easy to install, easy to combine with other modules.
