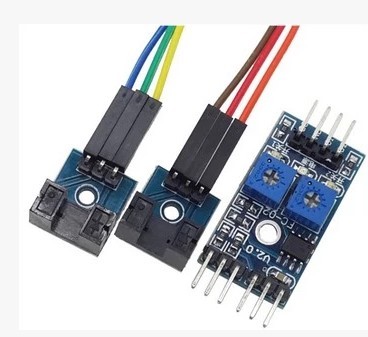

2-way Motor Speed Sensor Module เซนเซอร์วัดความเร็วรอบ Speed Counter สำหรับ Smart Car

โมดูล 2-way Motor Speed Sensor นิยมใช้ในงาน motor speed detection, pulse counting, position limits.

Features:

1. the use of imported groove coupler sensor
2. the groove width of 5mm.
3. the output status indicator, the output high-level lights off, the output low-level lights.
4. a block, the output low; no shelter, the output high.
5. the comparator output, the signal clean, good waveform, driving ability, more than 15mA.
6. the working voltage of 5V-3.3V
7. the output form: digital switching output (0 and 1)
8. a fixed bolt hole for easy installation
9. small PCB board size: 3.2cm X 1.7cm
10. using a wide voltage LM393 the comparator

Usage:
1. module slots unobstructed, receiver tube is turned on, the module DO output low, when blocked, DO output high;
2. DO module can be connected to the relay, consisting of limit switches, etc. Function, can also be connected with the active buzzer module to form the alarm.
