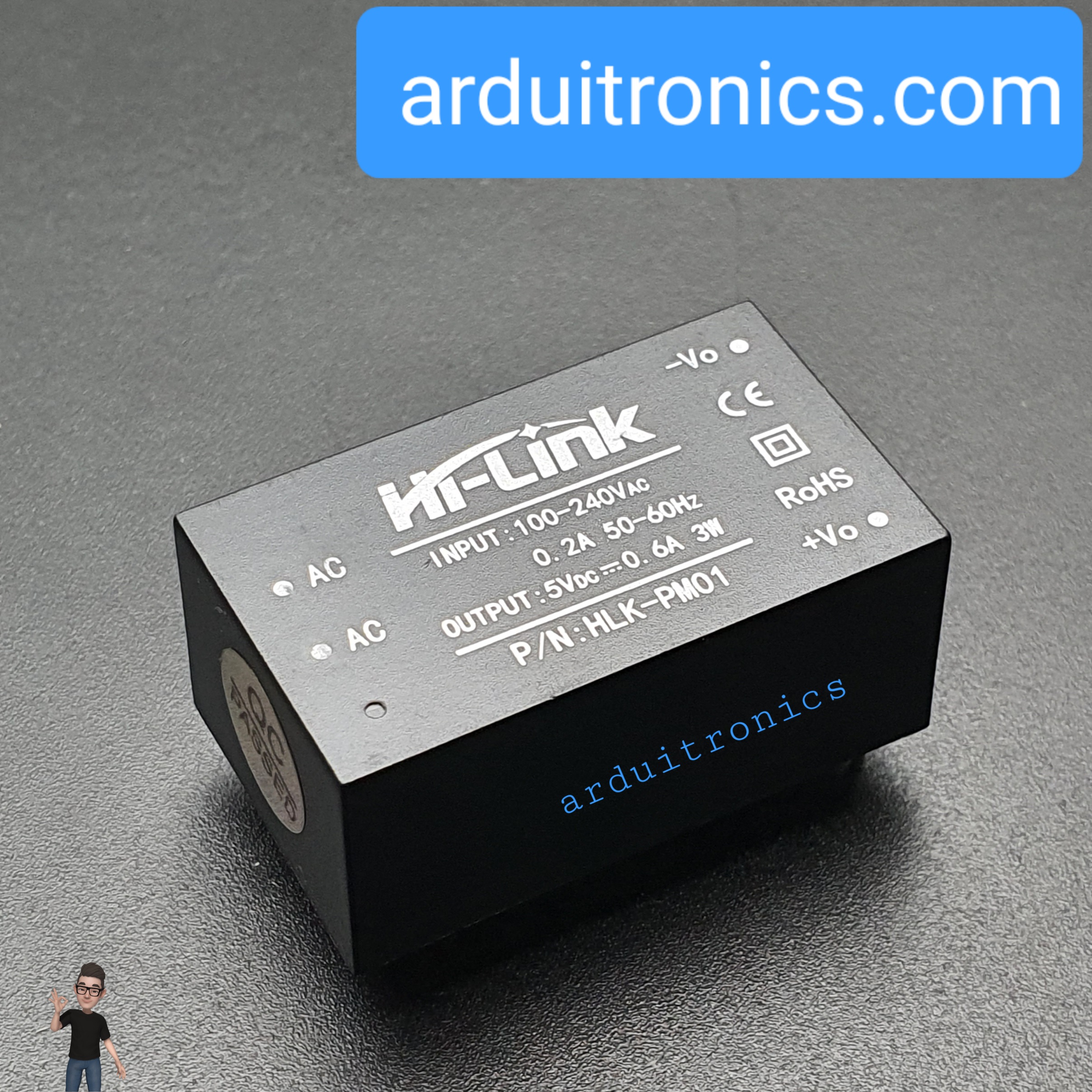

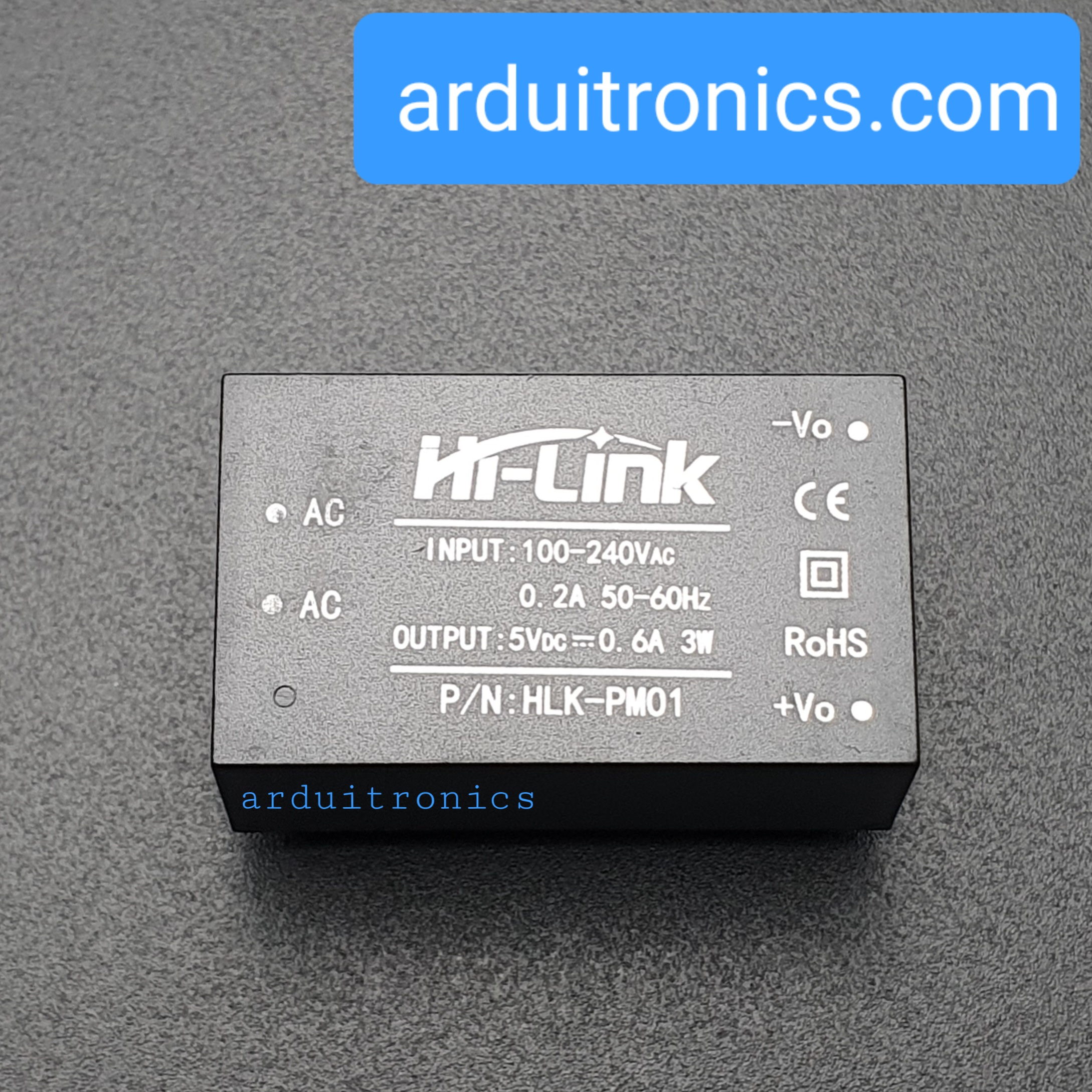

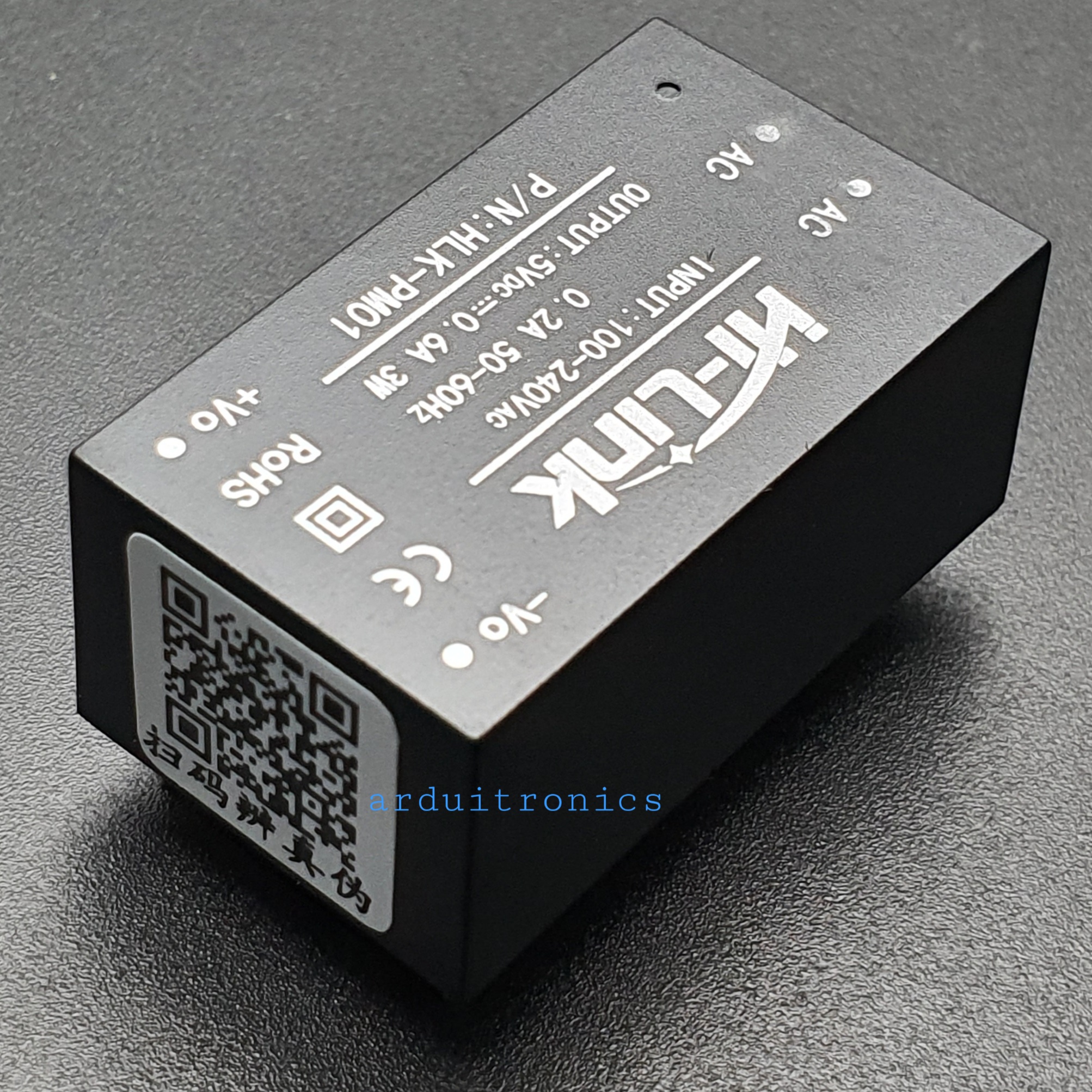

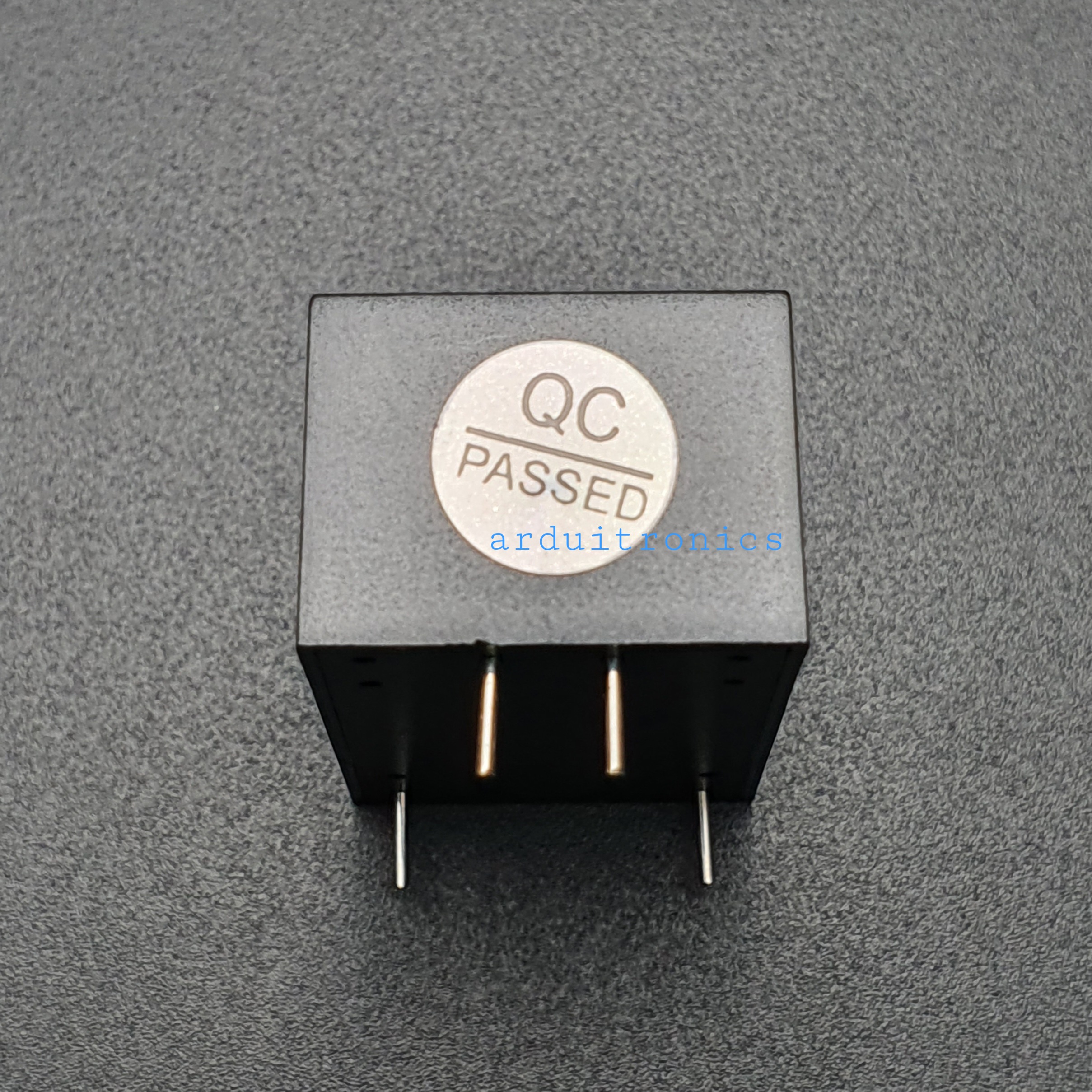

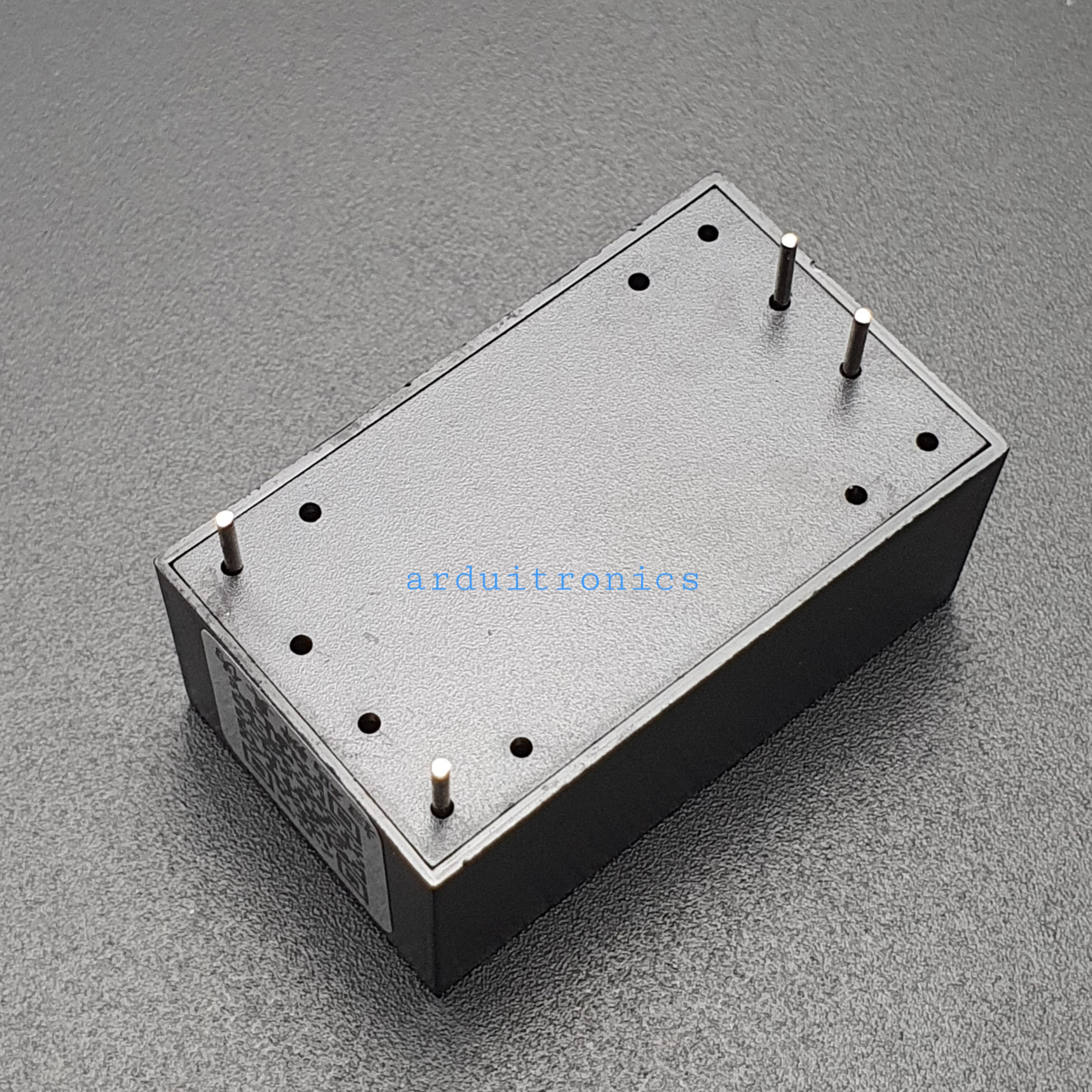

Switching Power Supply 220V to 5V 3W (Hi-Link HLK-PM01 Module)

This is a rather small module that can supply 5V/0.6A from either 120VAC or 230VAC, this makes it perfect for small projects that needs a 5 volt supply from mains.

Specifications:

• Meet UL, CE requirements,
• All voltage input (AC: 90 ~ 264V)
• Low ripple and low noise
• Output overload and short circuit protection
• High efficiency, high power density
• The product is designed to meet the requirements of EMC and Safety Test
• Low power consumption, environmental protection, no-load loss <0.1W
• Operation Temperature: -20—+60°C
• Store Temperature: -40—+80°C
• Relative humidity: 5—95%
• Rated input voltage:100-240VAc
• Maximum input current: <0.2A
• Input current surge: <10A
• maximum input voltage: 270VAc
• Input Low Voltage Efficiency: Vin=110VAc, Output full-load: 69%
• Input High Voltage Efficiency: Vin=220VAc, output full-load: 70%
• Long-term reliability: MTBF 100000h
• Load rated output voltage: +5±0.1
• Short-term maximum output current: 1000mA
• The maximum output current for a long time: 600mA
• Output ripple and noise: 50 mVpp Rated input voltage, full load. Using 20MHz of bandwidth, the load side with 10uF and 0.1uF capacitor
• Shell maximum surface temperature does not exceed 60°C
