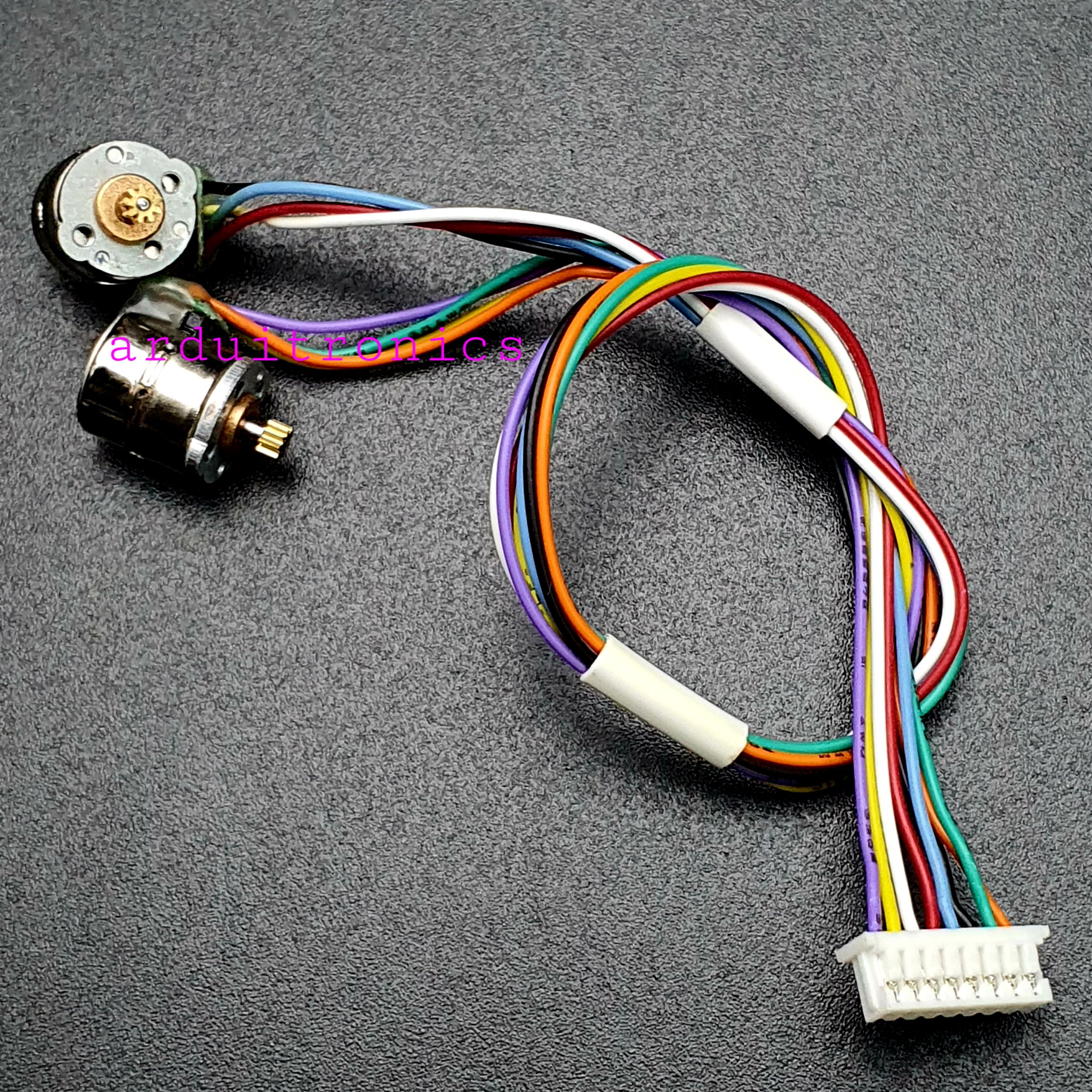

Micro Stepping Motor - 8mm ( Two Phase Four Wire Two Motors Gear Size 2.2mm )

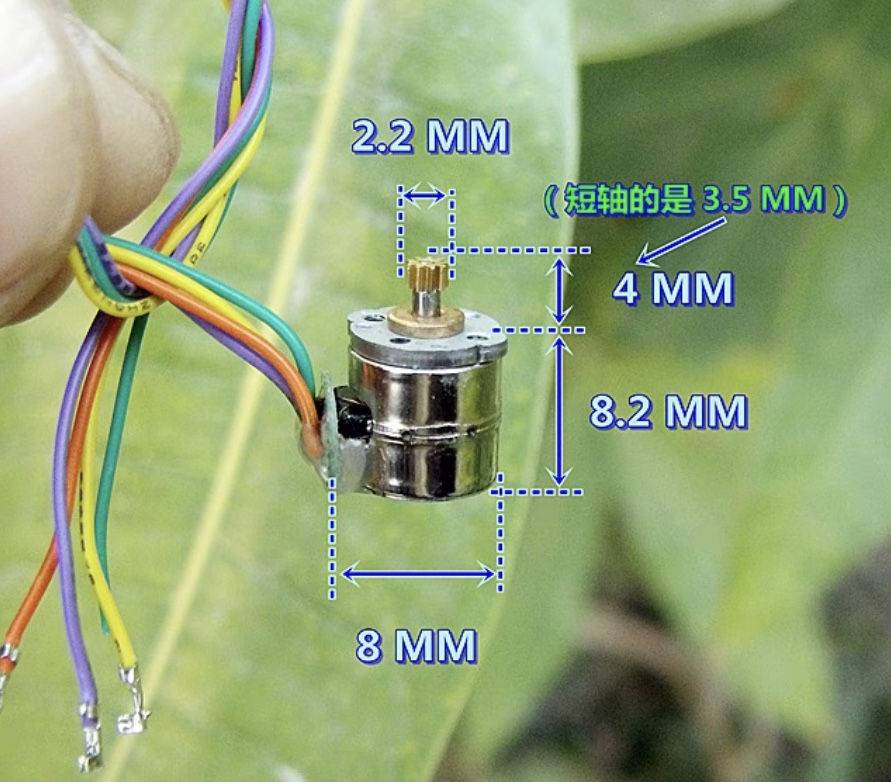

STEPPER MOTOR DIAMETER: 8 MM

HEIGHT: 8.2 MM

Type: two-phase four-line

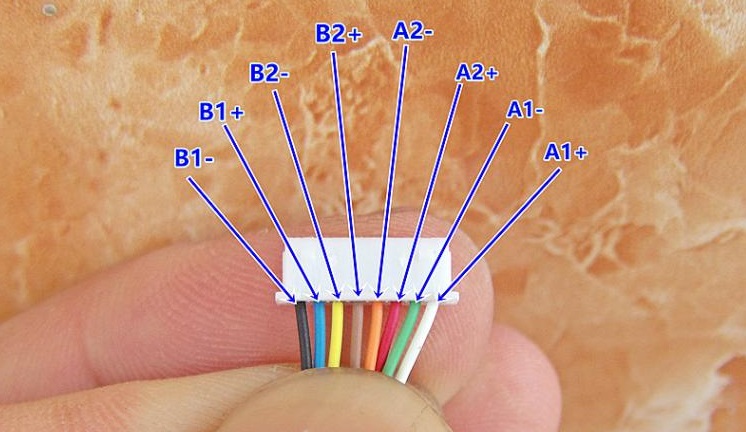

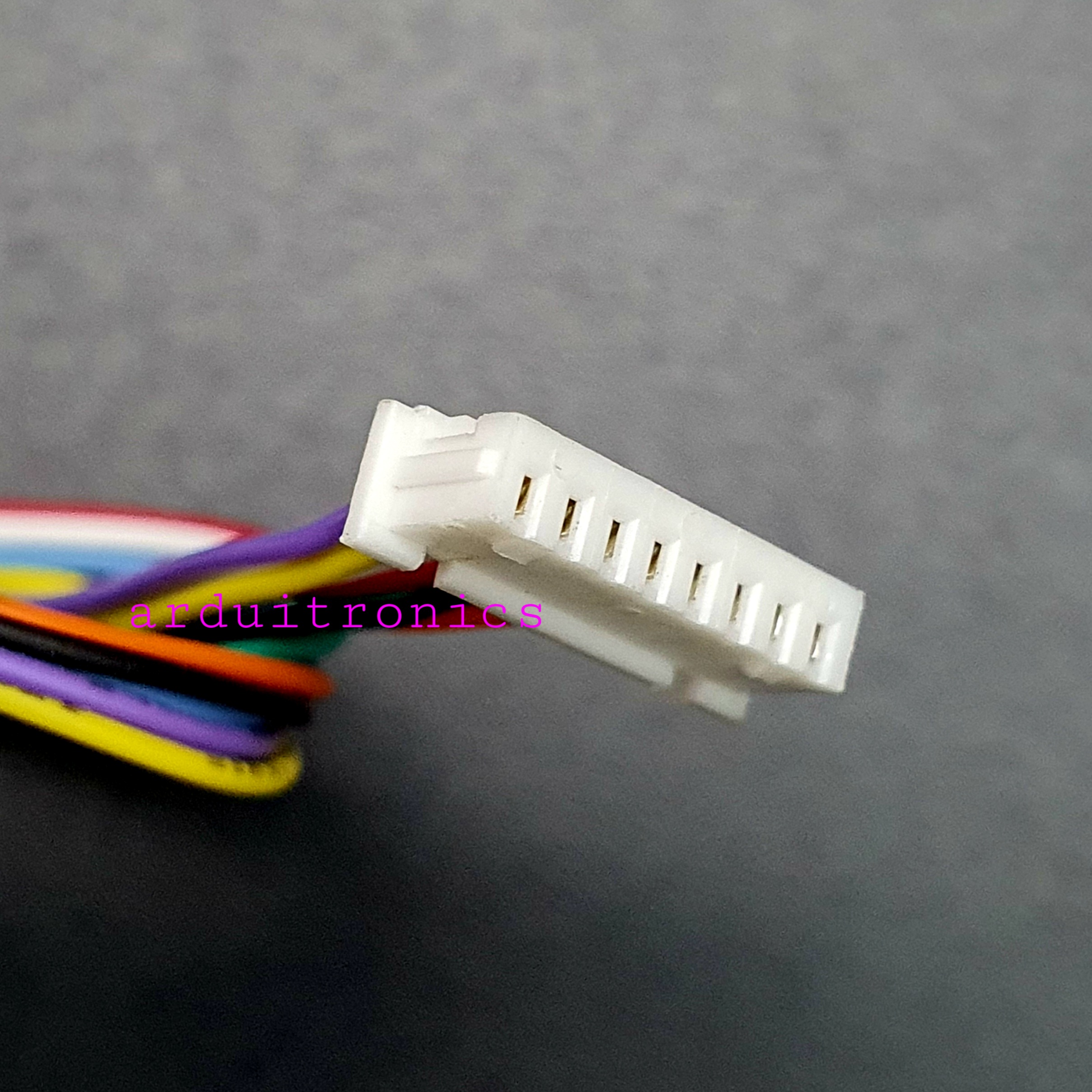

Long axis (blue: A+, black: A-. Red: B+, White: B-)

Short axis (purple: A+, yellow: B-. Orange: B+, Green: B-)

Internal resistance value: 39.2 ohm

6 V short-circuit current: 0.14 A

(The phase voltage is estimated to be 5V-6V, and the driving current is about 0.12A)

OUTPUT AXIS: 1.5 MM

OUTPUT AXIS LENGTH: LONG AXIS 4MM, SHORT AXIS 3.5MM.

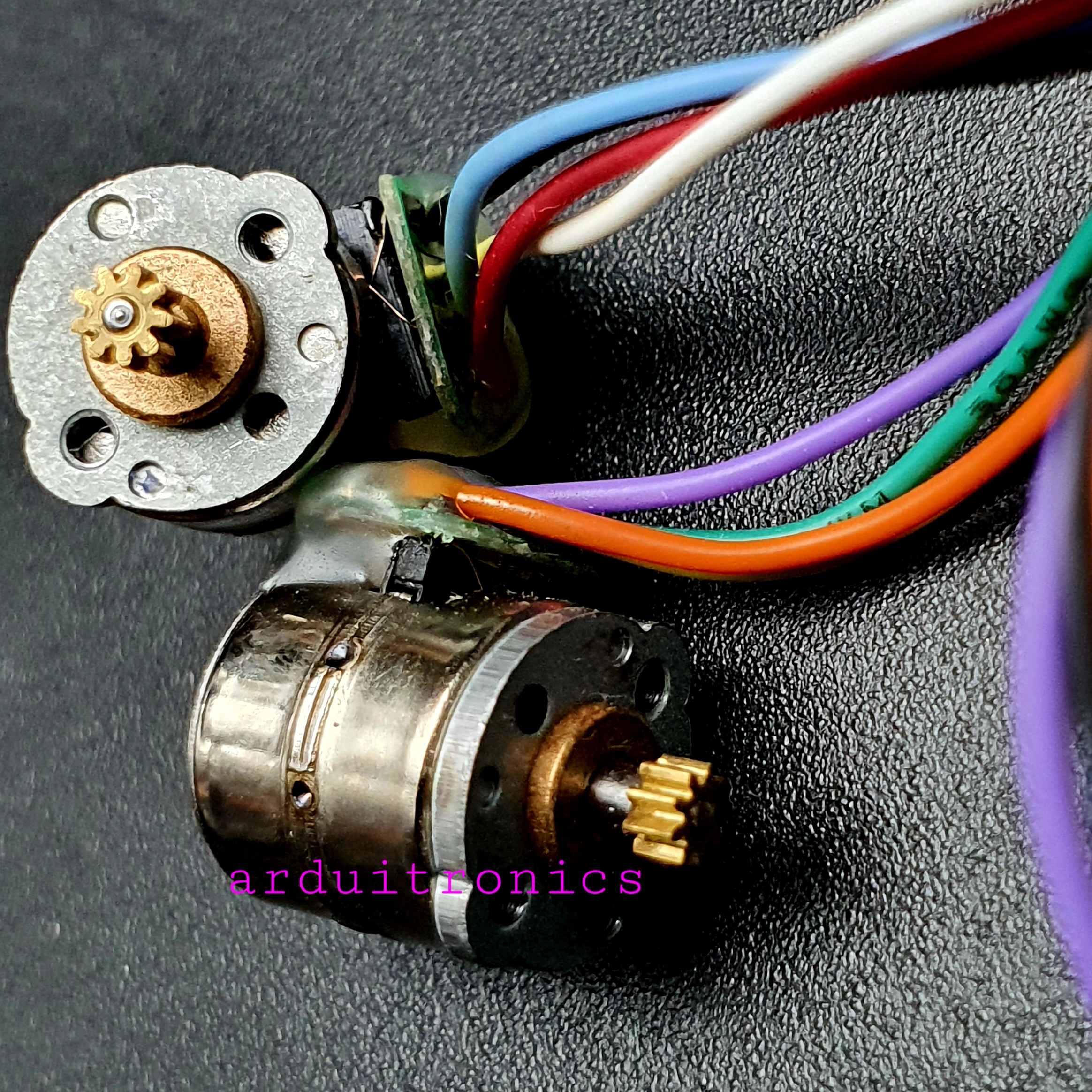

OUTER DIAMETER OF COPPER GEAR: 2.2 MM (9 THROWS, 0.2 MODulus)

Weight: 6 grams
