Slide Sensor V2 Robotbase 10k

Slide Sensor V2 Robotbase 10k

 เซนเซอร์แบบเลื่อน ให้ค่าเป็นความต้านทานที่เปลี่ยนแปลง ขนาด 10 kohm

Description:

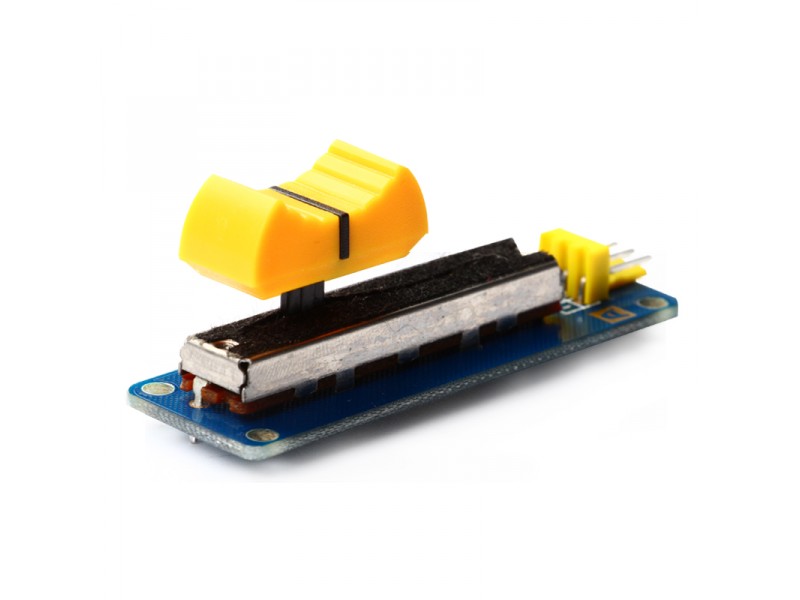

This slide potentiometer is a linear variable resistor with a total resistance of 10k. When you move the lever from one side to the other, its output voltage will range between 0 V to 5V. While the remaining pin is connected to a green indicator LED. You can use the indicator LED to visually display the change on the potentiometer.

This slide potentiometer can be combined easily with the Arduino IO/sensor expansion board. It also can connect with arduino controller and other sensors to make a lot cool works.

Specification:

• Item name: Slide Position Sensor
• Item type: Input
• Interface type: KF2510-3P
• Operating voltage: 5V
• Input voltage: 0-5V
• Output signal: Analog
• Item Size: 62mm x 20mm
• Hole pitch: 55mm x 15mm
• Size 10. Weight: 25g
• Test environment:

1. -Hardware Environment: arduino controller, sensor shield V5.0, slider sensor, LED module.
2. -Software environment: Arduino IDE 1.7.7

• Pin Definitions:

1. S: Signal
2. -: GND (Power ground)
3. +: VCC (Positive power)
