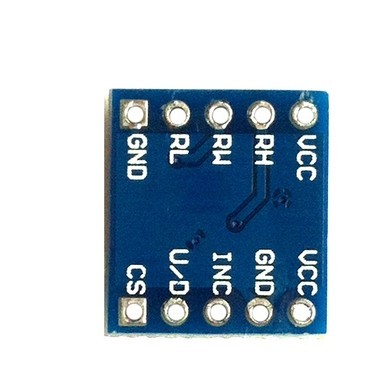

Digital Potentiometer Module (X9C104) - 100kOhm

Key Features

• Solid-State Potentiometer
• Three-Wire Serial Interface
• 100 Wiper Tap Points
• Wiper Position Stored in Non-volatile Memory and Recalled on Power-up
• 99 Resistive Elements
• Temperature Compensated
• End-to-End Resistance, ±20%
• Terminal Voltages, ±5V
• Low Power CMOS
• VCC = 5V
• Active Current, 3mA max.
• Standby Current, 750µA max.
• High Reliability
• Endurance, 100,000 Data Changes per Bit
• Register Data Retention, 100 years
• X9C102 = 1kΩ
• X9C103 = 10kΩ
• X9C503 = 50kΩ
• X9C104 = 100kΩ
• Packages
• 8 Ld SOIC
• 8 Ld PDIP
• Pb-Free Available (RoHS Compliant)

Description

The X9C102, X9C103, X9C104, X9C503 are Intersils' digitally controlled (XDCP) potentiometers. The device consists of a resistor array, wiper switches, a control section, and non-volatile memory. The wiper position is controlled by a three-wire interface.

The potentiometer is implemented by a resistor array composed of 99 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The position of the wiper can be stored in non-volatile memory and then be recalled upon a subsequent power-up operation.

The device can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications ranging from control to signal processing to parameter adjustment.
