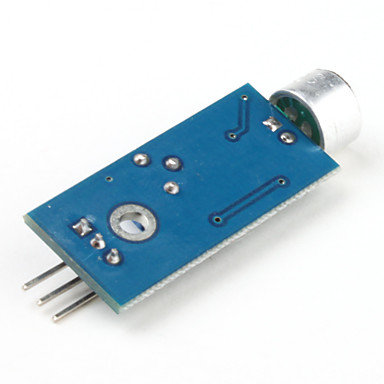

Sound Sensor Module (Condenser on side of PCB)

Sound Sensor Module for Arduino

Description:
1. Detecting the sound intensity of the surrounding environment, Caution: This sensor is

only identify whether the size (according to the vibration principle) does not recognize

the specific sound or sound frequency sound.

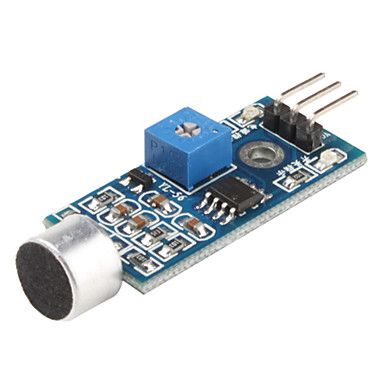

2 .adjustable sensitivity (shown in blue digital potentiometer adjustment).
3. Operating voltage: DC3.3V-5V.
5. Output format: digital switching outputs (0 and 1 high and low).
6. with fixed bolt hole for easy installation.
7. small PCB board size: 3.4cm * 1.6cm.

Module Interface Description :
1.VCC external 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU)
2.GND GND External
3.DO small board digital output interfaces (0 and 1)

Instructions for use:
1. This module is very sensitive to the intensity of the ambient sound, is generally

used to detect the intensity of the ambient sound.

2. when the sound intensity is less than the set threshold reached, DO port output

high when the ambient sound level exceeds the set threshold, the module D0

output low;
3.digital outputs D0 can be directly connected with the microcontroller through the

microcontroller to detect high and low, thereby detecting the sound environment;
4. digital outputs DO relay module can drive, which can be composed of a

voice-activated switch;

Package Include:
1 x Sound detection module
