| Part Number | CCM6C |
|---|---|
| Product Dimensions | 5 x 3.5 x 3 inches |
| Item model number | CCM6C |
| Shape | Square |
| Power Source | DC |
| Wattage | 300 watts |
| Item Package Quantity | 1 |
| Switch Style | Rocker switch |
Features:

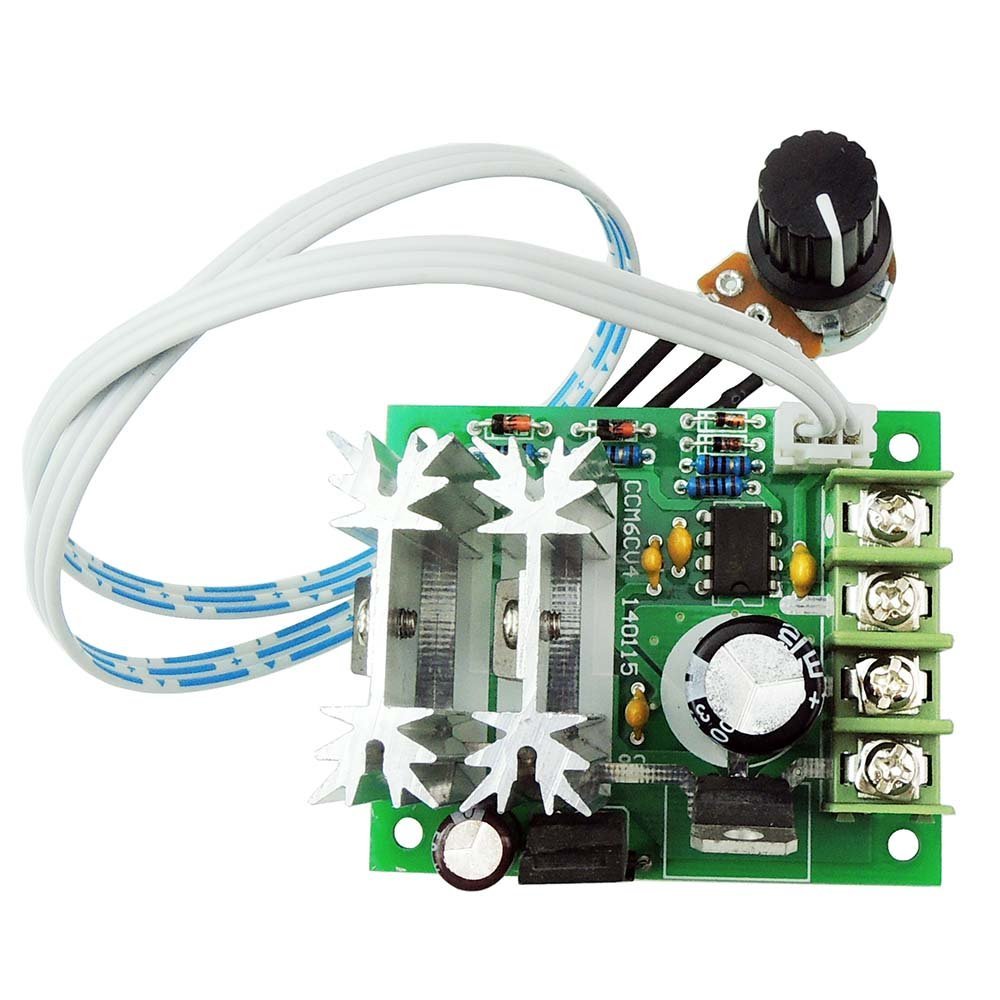

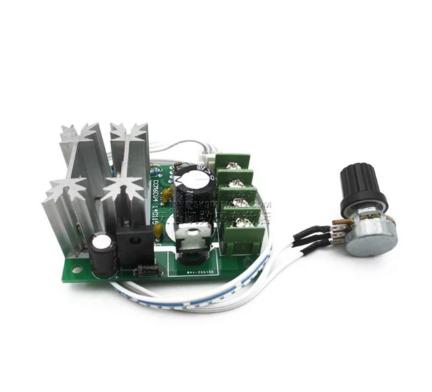

CCM6C DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
Adjustable speed range is 5%-100%.
Suitable for the DC motor (or DC load) within 10A, Peak current 20A.
potentiometer cable length 40cm.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER. TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
1. Connect wires refer to the "wiring diagram".
2. Turn on the power, and adjust the potentiometer.
Package Including:
1 x DC Motor Speed Controller
CCM6C DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
Adjustable speed range is 5%-100%.
Suitable for the DC motor (or DC load) within 10A, Peak current 20A.
potentiometer cable length 40cm.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER. TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
1. Connect wires refer to the "wiring diagram".
2. Turn on the power, and adjust the potentiometer.
Package Including:
1 x DC Motor Speed Controller
