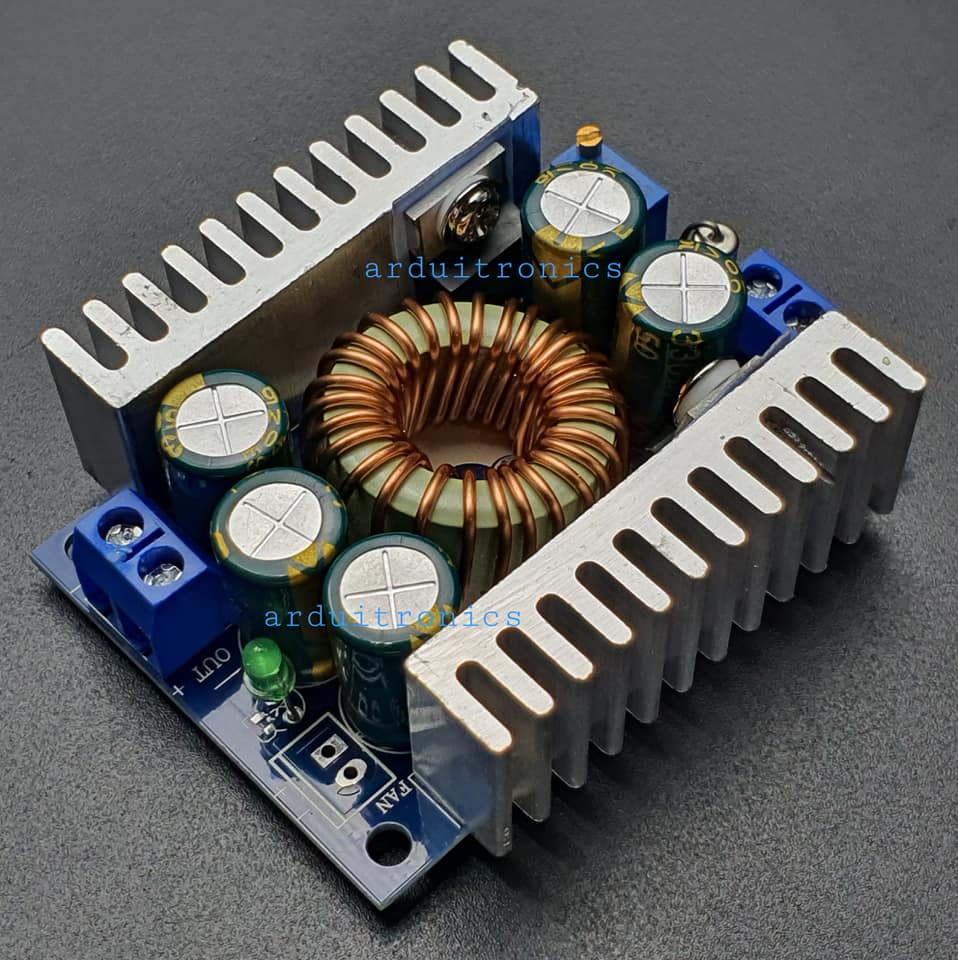

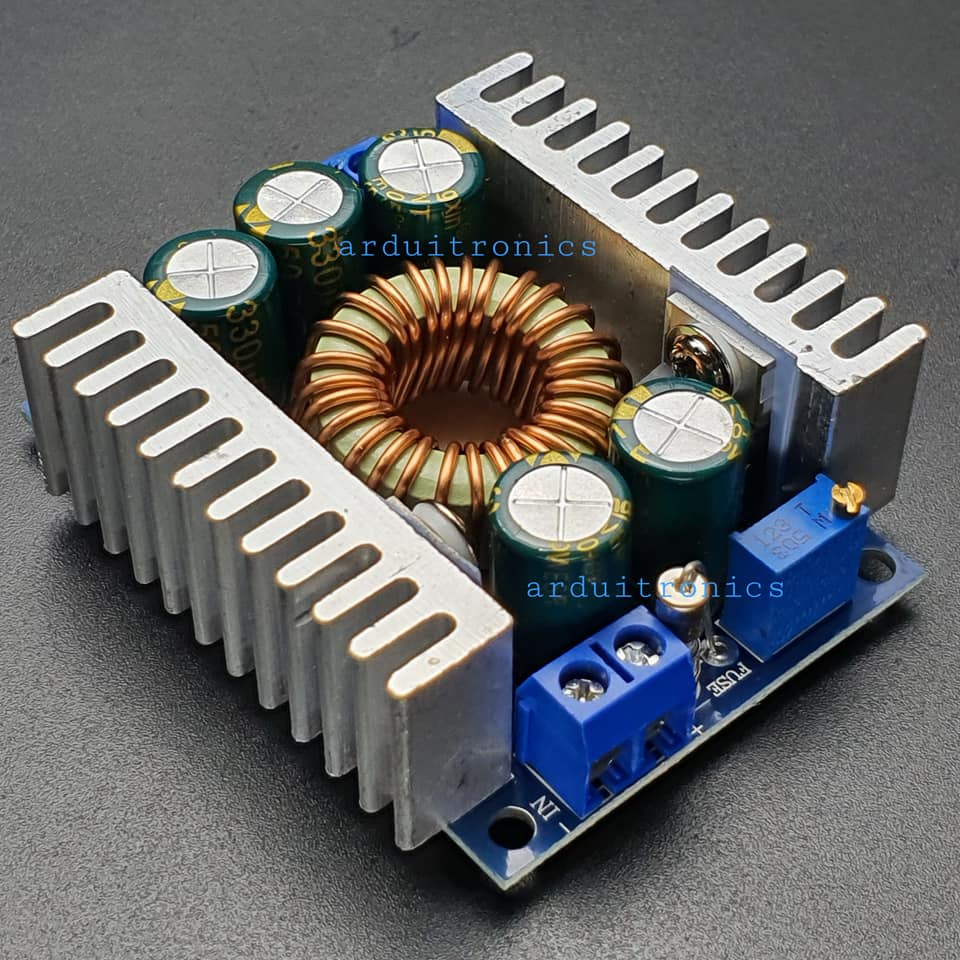

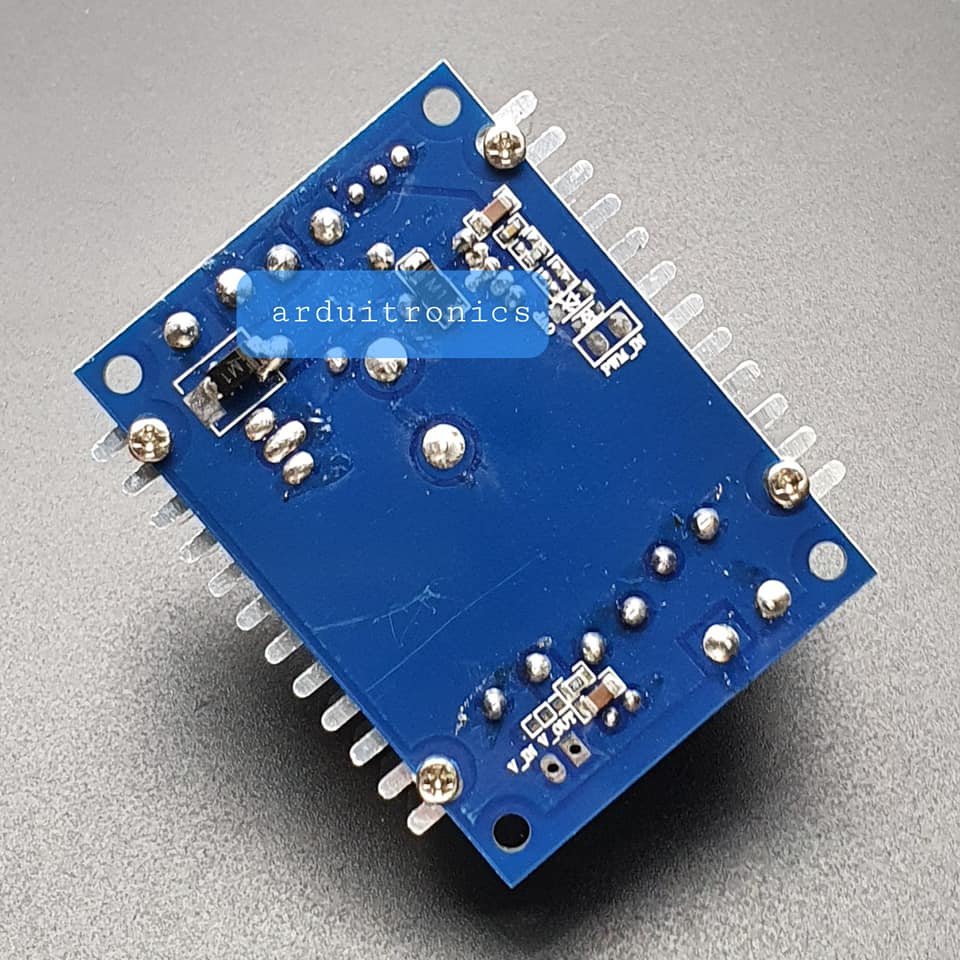

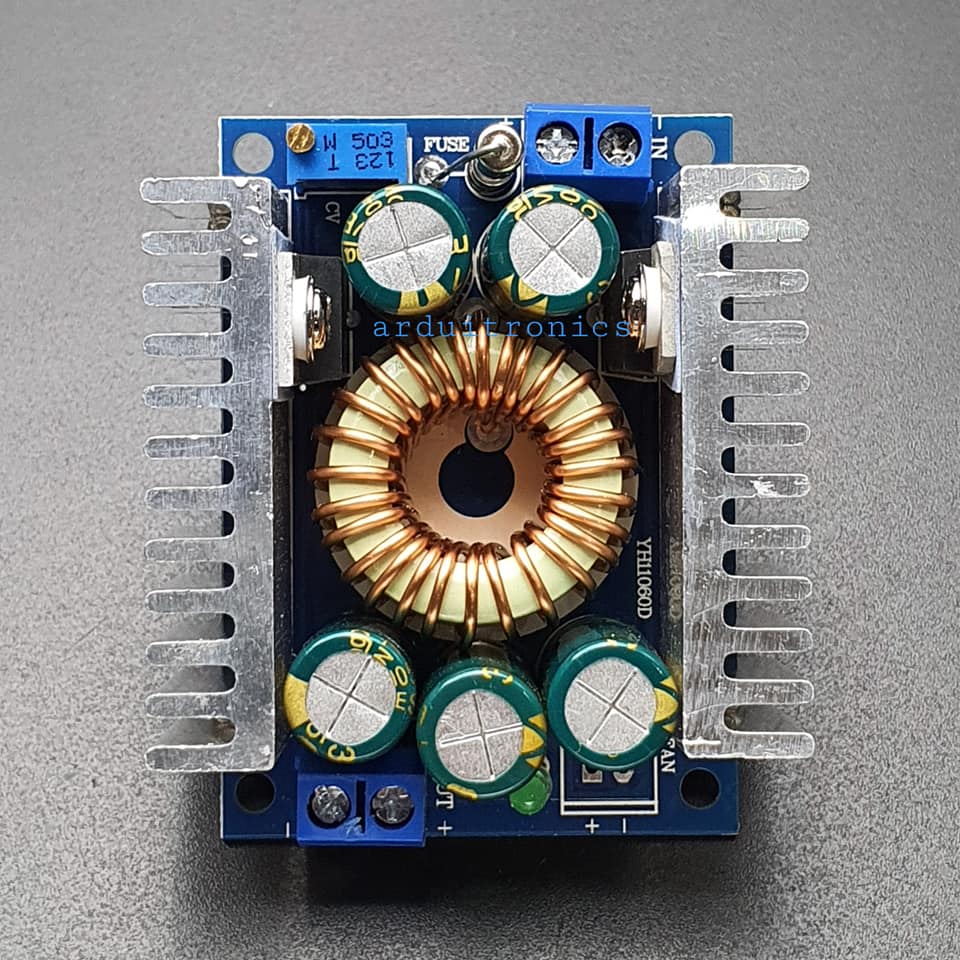

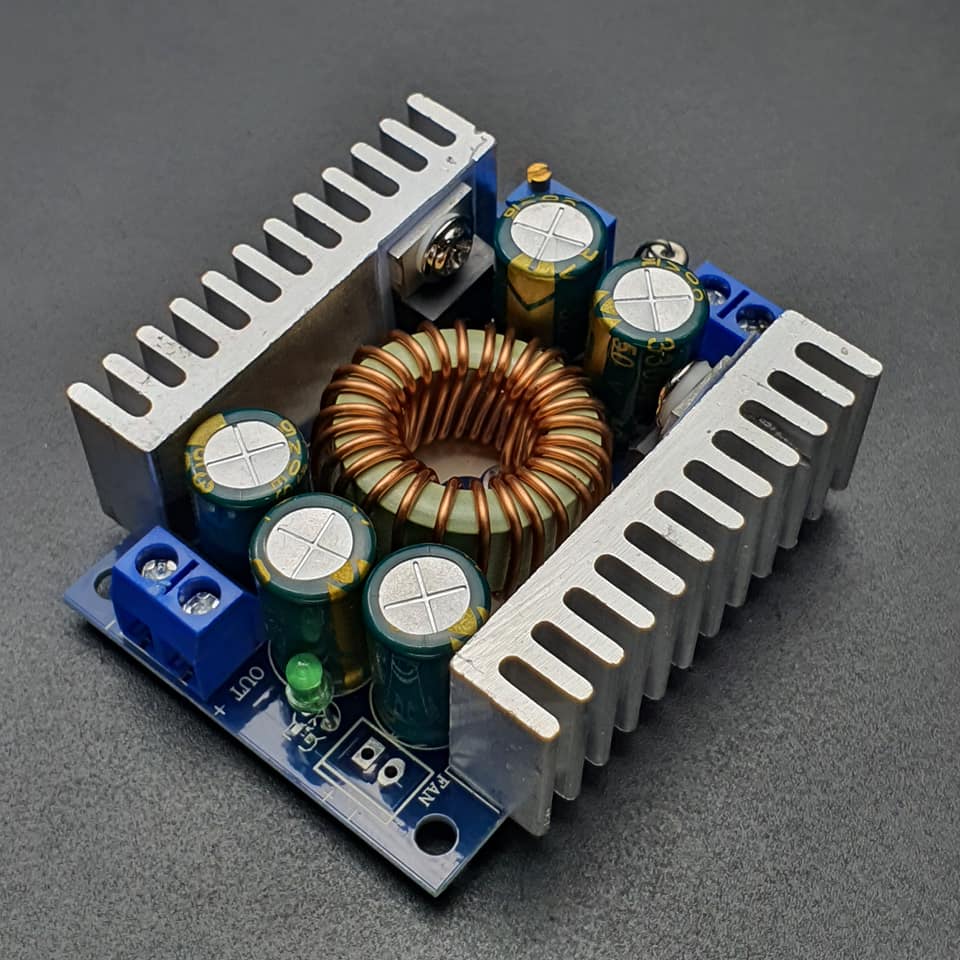

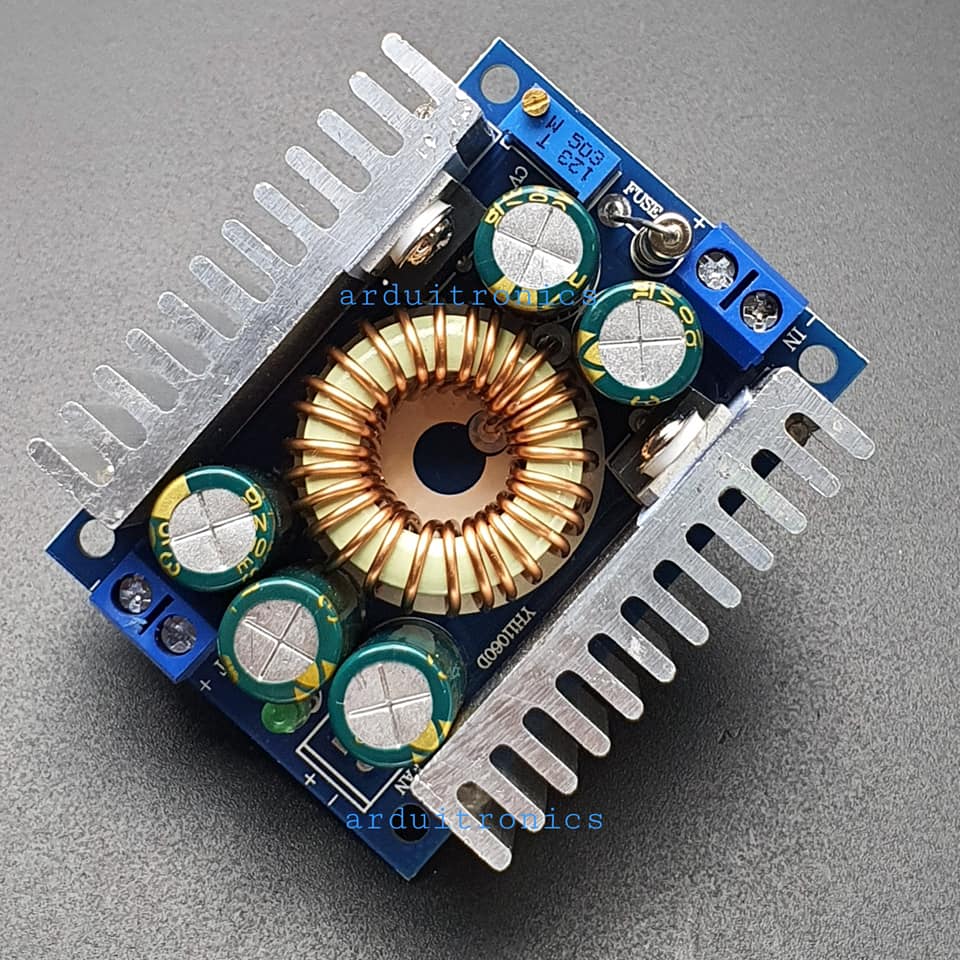

Low Ripple DC-DC12A Power Supply Module (Step Down)

Low Ripple DC-DC power module 12A adjustable buck 95% efficient vehicle power supply module

Module parameters:

Module Name: 12A Buck perfect version

Module Properties: non-isolated step-down module (BUCK)

Input voltage: 5 -40V input voltage do not exceed 40V! ! !

Output voltage: 1.2-36V adjustable (default output 5V)

                       Fixed output 1.2-36V

                       Default shipping adjustable output

Output Current: 12A MAX (rated 8A, the peak 12A) 100W enhance heat dissipation of up to 200W,

Operating temperature: - 40 ~ + 85 degrees

Operating frequency: 180 kHz

Conversion efficiency: up to 95% (efficiency of input and output voltage, current, pressure related)

Short circuit protection: Yes (limited current 12A) Try not to short circuit

Overtemperature protection: There are (automatically shut off the output after overtemperature)

Input reverse polarity protection: None, (if necessary please enter the string into the diode)

Installation: four 3mm screws

Connection: Terminals, solderless, V-IN is the input, V-OUT output, with the housing module wire output.

Module dimensions: length 60mm width 51mm height 22mm

Applications:

This module can be applied in the field buck input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power, industrial equipment buck, 12V switch 3.3 V, 12V turn 5V, 24V turn 5V, 24V switch 12V and so on.
